Hermes Systems

Hermes MM-A is a "state-of-the-art" hard-wired communications multiplexor for data transmission for up to 8 bi-directional channels over a single twisted pair. Data communication capability over the cable is 230kbaud or 115kbaud in RS485 mode. Communication with each sensor is up to 230kbaud in either RS232 or RS485.

Hermes MM-A solves the problem of having more signals to transmit than twisted pairs and negates the problem of multiple copper umbilicals to the detriment of data acquisition and overall operational effectiveness.

The system comprises a number of individual components which can be mixed and matched to suit the users application.

PRODUCT PHOTOS

Hermes Systems

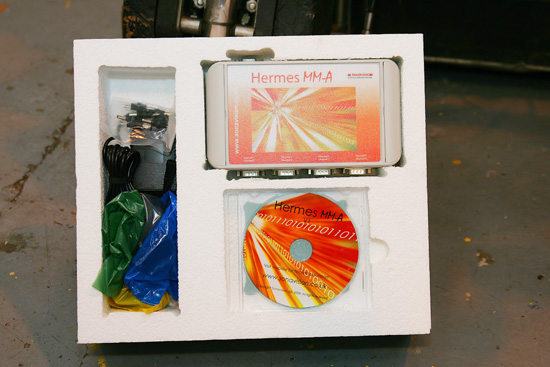

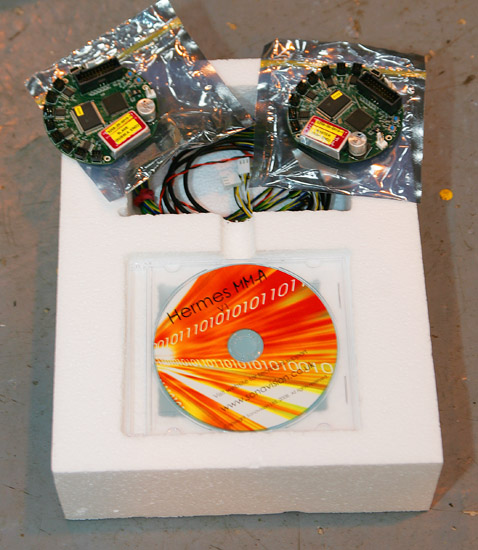

Hermes 02Hermes Topside KitHermes OEM Kit

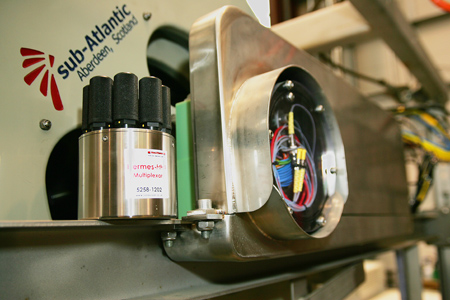

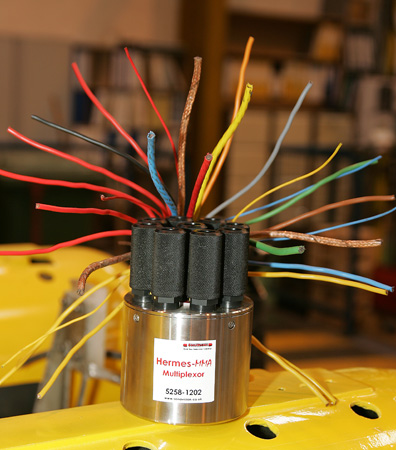

Hermes 03Hermes PodHermes Wiring Explosion

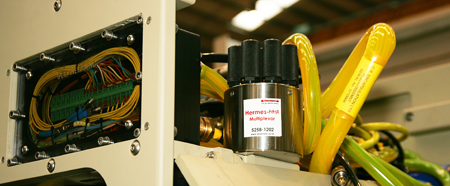

Hermes Junction Box
  • RS232 or RS485 Full Duplex Communication
  • 8 Channels
  • Up to 230kBaud Combined Data Transfer
  • Available in PCB Format for OEM Manufacturing
  • Available in a Range of Underwater Housings
  • Easily set up for Sonavision products or any other third party serial devices
  • Workclass and Survey Class ROV Sensor Package
  • ROV Tether Management System Control Communications
  • Combining Serial Data from Sensors to transmit via a Single Channel of a Fibre Optic Multiplexor
  • RS232 or RS485 Full Duplex Communication
  • 8 Channels
  • Up to 230kBaud Combined Data Transfer
  • Available in PCB Format for OEM Manufacturing
  • Available in a Range of Underwater Housings
  • Easily set up for Sonavision Equipment or any other Serial Devices
